Other 4 Tread Winder staircase Layouts

SW48N Staircase Layout

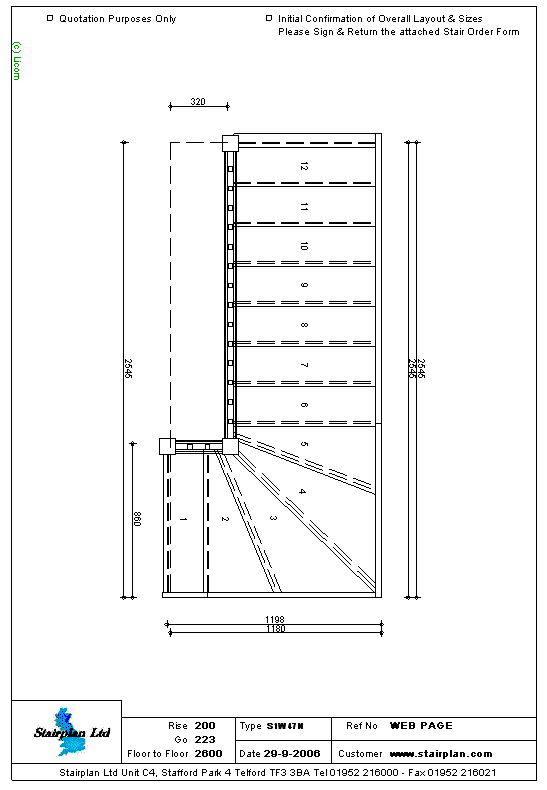

S1W47N Staircase Layout
S2W46N Staircase Layout
S3W45N Staircase Layout
S4W44N Staircase Layout
S5W43N Staircase Layout
S6W42N Staircase Layout
S7W41N Staircase Layout

The sizes on these drawings are based on a 2600mm Floor to Floor Height and a width of 860mm overall strings, these drawings are here as a guide to help you identify the layout of staircase you require, 99 % of the staircases we supply are made to measure.
